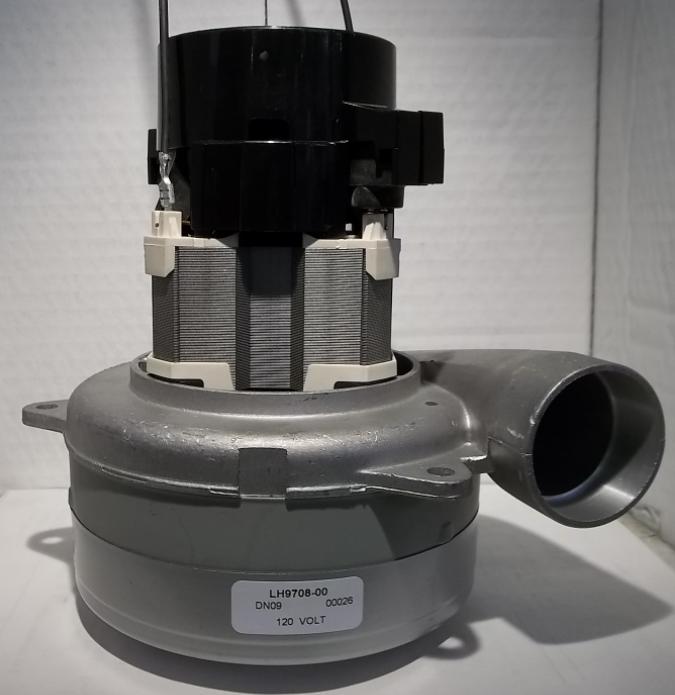

LH9708-00 Lighthouse vacuum motor, 5.7in., 120V, 2 stage

SKU: LH9708-00
(0)
$145.00
In stock
Usually ships within 24 hours
Brushes

The LH9708-00 is a 2-stage tangential bypass central vacuum motor offering exceptional airflow performance for whole-home vacuum systems. With 604 peak air watts and 131 CFM, it prioritizes high-volume suction — ideal for larger homes or systems where airflow is the priority over static lift.

Specifications:

  • Voltage: 120V
  • Stages: 2
  • Diameter: 5.7"
  • Discharge: Tangential
  • Peak Air Watts: 604
  • Water Lift: 129"
  • Airflow: 131 CFM
  • Amps: 13.4A

Available in Standard and Long Life versions. Choose Long Life for extended brush life in high-frequency or commercial installations.

Installation Note: Verify motor diameter and discharge orientation match your existing unit. Compatible with standard 5.7" motor housings.
  • SKU LH9708-00
  • 3/4" Amps 13.4
  • Bearings Ball/Ball
  • Blower Stages 2
  • Bracket Aluminum
  • CFM @ 2-in Orifice 131
  • Diameter 5.7
  • Discharge Tangential
  • Epoxy Tube
  • Parts Diagram Download
  • Peak Air Watts 604
  • Product Bulletin Download
  • Vacuum (H20 sealed) 129
  • Volts 120
