Lighthouse

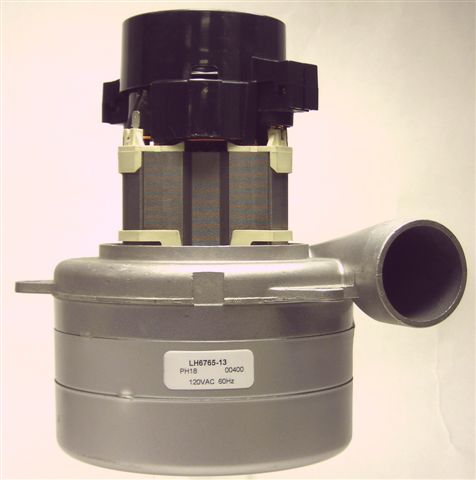

LH6765-13 Lighthouse vacuum motor, 5.7in., 120V, 3 stage

SKU: LH6765-13
(0)
$145.00
In stock
Usually ships within 24 hours
Brushes

The LH6765-13 is a high-performance 3-stage tangential bypass motor designed as a direct replacement for the Ametek 119709-00. Built for demanding central vacuum applications, it delivers 512 peak air watts, 141" of water lift, and 106 CFM of airflow — making it one of the most powerful options in its class.

Specifications:

  • Voltage: 120V
  • Stages: 3
  • Diameter: 5.7"
  • Discharge: Tangential
  • Peak Air Watts: 512
  • Water Lift: 141"
  • Airflow: 106 CFM
  • Amps: 13.2A

Replaces: Ametek 119709-00

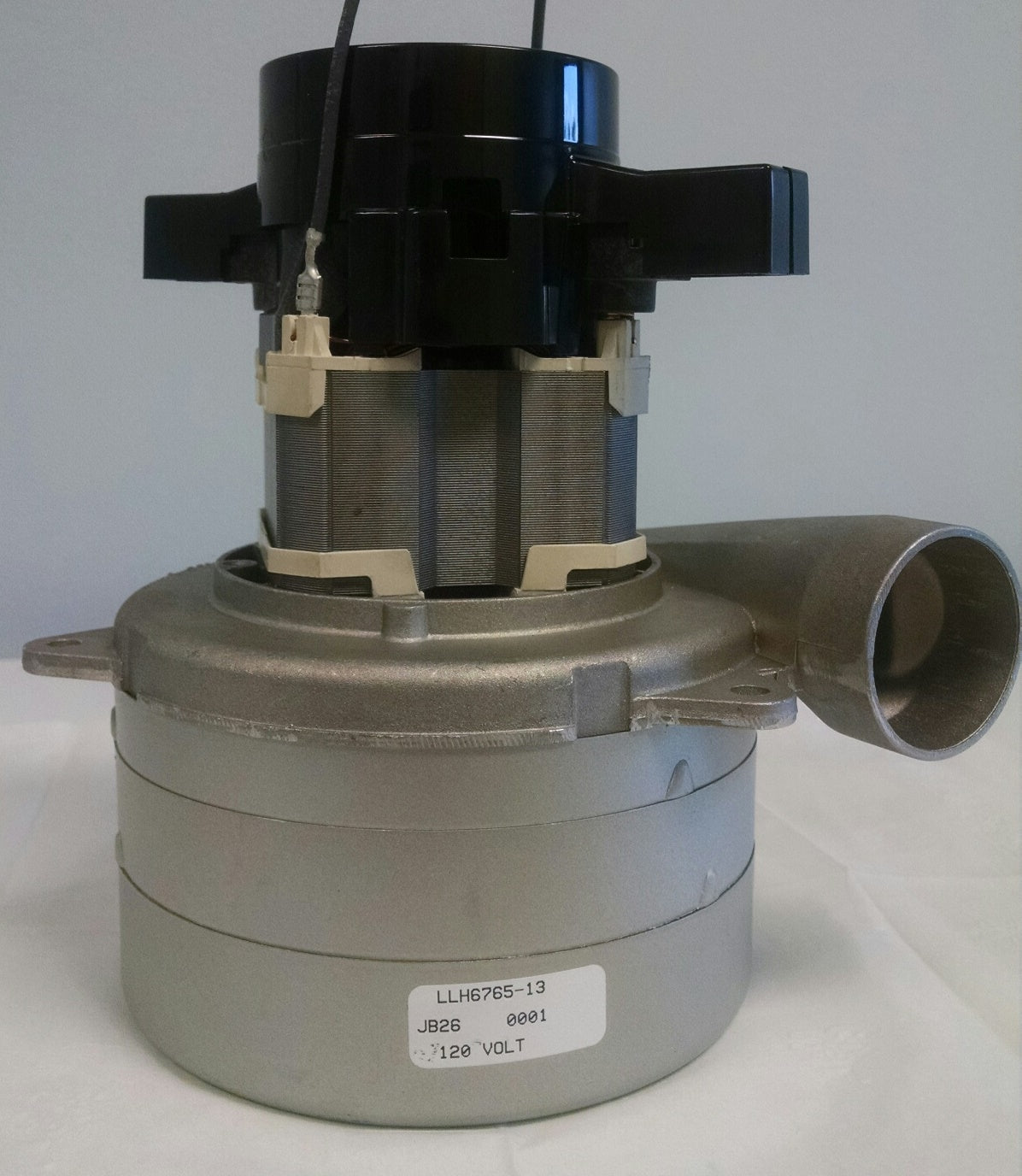

Available in Standard and Long Life versions. The Long Life variant features upgraded carbon brushes for extended motor life — ideal for high-use installations.

Installation Note: Confirm motor diameter and discharge type match your existing unit before installation. Compatible with most 5.7" motor housings using a standard gasket.
  • SKU LH6765-13
  • 3/4" Amps 13.2
  • Bearings Ball/Ball
  • Blower Stages 3
  • Bracket Aluminum
  • CFM @ 2-in Orifice 106
  • Diameter 5.7
  • Discharge Tangential
  • Epoxy Tube

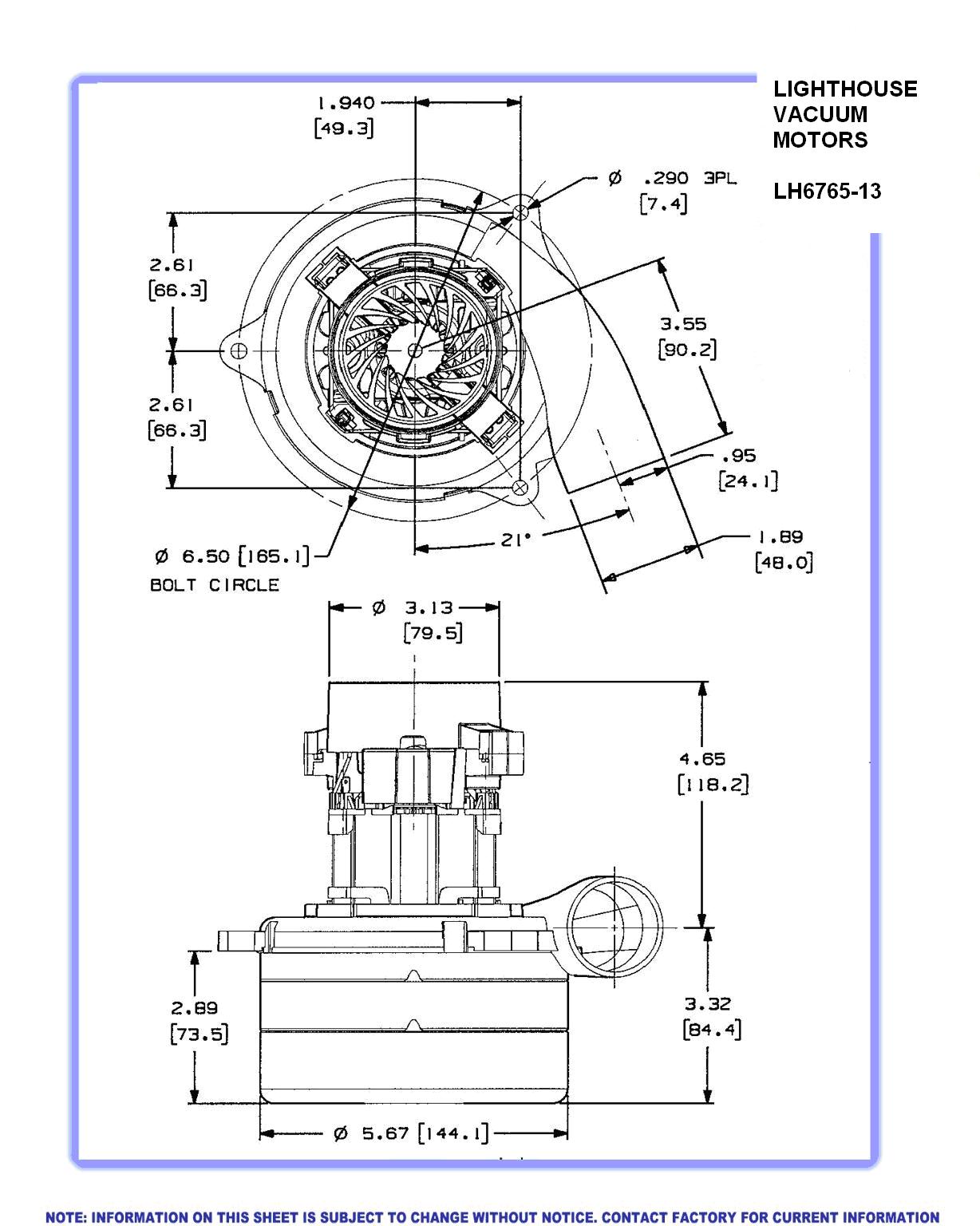

  • Parts Diagram Download
  • Peak Air Watts 512
  • Product Bulletin Download
  • Replaces Ametek 119709-00
  • Vacuum (H20 sealed) 141
  • Volts 120
