Largest Selection of Vacuum Motors and Parts on the Internet!!

NEW LONGER BRUSH LIFE OPTION - ONLY for NEW MOTORS
For ONLY $10 you get our NEW up to 50% more life brushes.
No longer need to stock spare brushes.  They are 3/4" longer than standard and have a constant pressure
tension spring, not the coil spring. When the motor finally quits, everything is worn out and it is time for a new motor.
Example -  500 to 1000 hours motors, with LLBrushes 750 - 1500 hours
Long Life
Brushes
LLBrushes		 Just pay the extra $10 per motor here if you want this extra motor life option. For 120, 220, 230 & 240 volt motors $10

These motors are designed and assembled in the USA for another choice for those who want an American assembled product.  We have reference info on most major brands of central vacuums.

Design Life: 5.7"- 500 - 1000 hours
The Lighthouse Brand vacuum motors carry the same one year warrantee with the same limitations that the name brands carry.  All Lighthouse Brand Vacuum Motors have equal to or greater specifications than the Ametek model they are replacing.
 We can put a 1.5" inlet tube on any flat bottomed 5.7"
 LH motor except the 1 stage flow thru motors
 for only $10 when ordered with a new motor.

We sell only new vacuum  motors.
 All vacuum motors have a 1 year
 warrantee from date of purchase.
    Prices include shipping within contiguous USA!
except where noted!
Click on Part Number or picture for a larger picture
Click on Product Bulletin for Specifications
Click on Diagram for Physical Dimensions

Pictures Ametek# Lighthouse# No.
Fan
Stg		 Peak
Air
Watts		 Vac In (") H2O Sealed CFM
 2" Orifice		 Avg.
Amps
3/4"		 Sell
For		 Buy
  116095-13
230-volt		 LH6095-13
Product Bulletin
Diagram		 2 182 70.6" 83.1 2.9 $111
116110-01
240-volt		 LH6110-01
Product Bulletin
Diagram		 2 339 95" 101 4.2 $111
 to US

$174
to
Europe


116110-01
240-volt
LL Brushes		 LLH6110-01
Product Bulletin
Diagram		 2 339 95" 101 4.2 $122
 to US

$184
to
Europe


  116157-00
24 volt		 LH6157-00
Product Bulletin
Diagram		 2 103 45.6" 68.1 15.9 $156
  116157-18
24 volt		 LH6157-18
Product Bulletin
Diagram		 2 103 45.6" 68.1 15.9 $167
116157-29
24 volt
1 1/2" tube		 LH6157-29
Product Bulletin
Diagram		 2 103 45.6" 68.1 15.9 $167
  116157-32
24 volt
1 7/8" tube		 LH6157-32
Product Bulletin
Diagram		 2 103 45.6" 68.1 15.9 $167
  116158-00
36 volt
1 7/8" tube		 LH6158-00
Product Bulletin
Diagram		 2 118 50.6" 71.1 10.7 $179
  116158-01
36 volt		 LH6158-01
Product Bulletin
Diagram		 2 118 50.6" 71.1 10.7 $169
116311-01
120 volt		 LH6311-01
Product Bulletin
Diagram
Will not fit in
ProTeam!		 2 286 95" 90 9.2 $90
116311-01
120 volt
with auto
reset
thermal		 LH6311-01ART
Product Bulletin
Diagram		 2 286 95" 90 9.2 $100
116336-00/01
120 volt		 LH6336-01
Product Bulletin
Diagram
 Fein III - 9.77.25
replacement motor		 2 281 84" 96 7.4 $84
116336-00/01
120 volt		 LH6336-01-WD
wet/dry protection
Product Bulletin
Diagram		 2 281 84" 96 7.4 $91
116336-00/01
Extra
120 volt		 LH6336-01-Extra
Product Bulletin
Diagram		 2 308 89 101 8.1 $101
116336-00/01
Extra
120 volt
LL Brushes		 LLH6336-01-Extra
Product Bulletin
Diagram		 2 308 89 101 8.1 $111
116336-01
220v		 LH6336-220
Product Bulletin
Diagram		 2 289 86" 96 3.9 $91

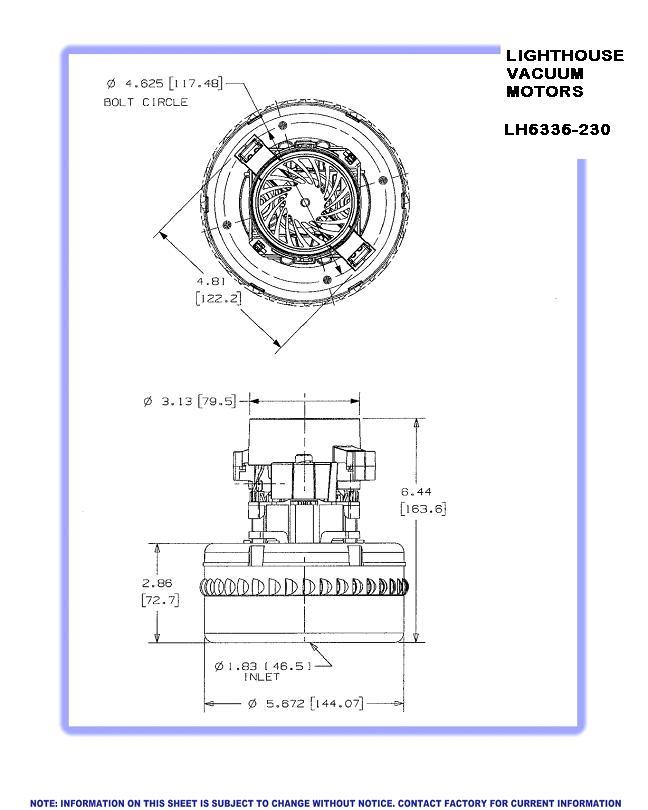

116336-01
230v		 LH6336-230
Product Bulletin
Diagram		 2 312 90" 98 4.1 $91
116336-01
240-volt		 LH6336-240
Product Bulletin
Diagram		 2 339 95" 101 4.2 $91
116352-120 volt
better
choice
use Ametek
116448-00		 LH6352-120
Product Bulletin
Diagram

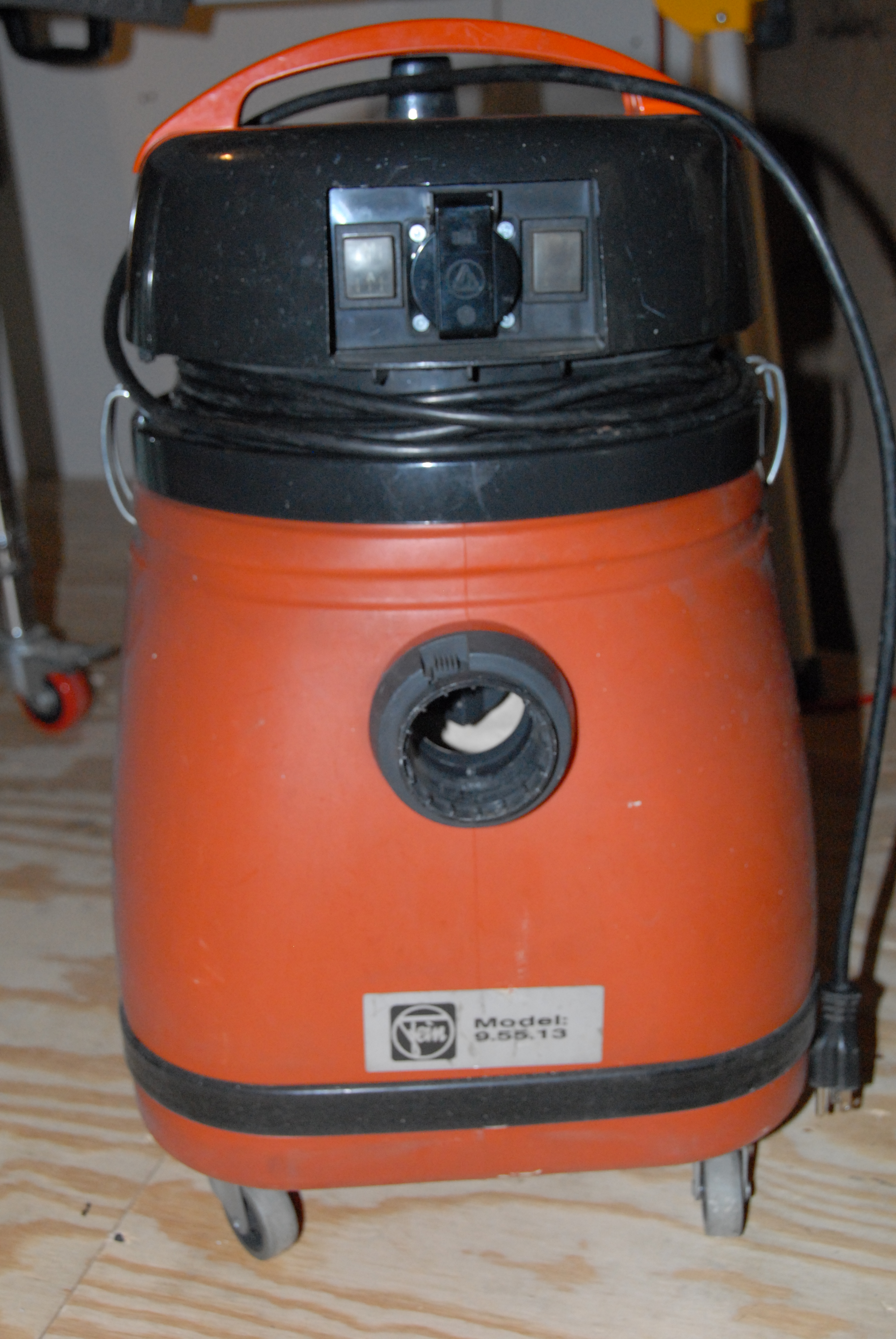

used in 9.55.13
 Fein II with help
LH motor a little taller
Pic 1, Pic 2, Pic 3, Pic4		 2 474 115" 116 12.1 $122
116352-00
220 volt		 LH6352-00
Product Bulletin
Diagram		 2 446 113" 109 6.4 $129
116352-230 volt LH6352-230
Product Bulletin
Diagram		 2 489 119" 114 6.7 $129
116352-240 volt LH6352-240
Product Bulletin
Diagram		 2 526 125" 116 7.0 $129
116353-00
220 volt		 LH6353-00
Product Bulletin
Diagram		 2 441 112" 106 10.7 $134

no tube shown yet		 116353-29
220 volt		 LH6353-29
Product Bulletin
Diagram		 2 441 112"
w/1.5"
inlet
tube		 106 10.7 $144

no tube shown yet		 116353-32
220 volt		 LH6353-32
Product Bulletin
Diagram		 2 441 112"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 106 10.7 $144
116354-
00
240 volt		 LH6354-00
Product Bulletin
Diagram		 2 526 125" 116 7.0 $122
116355-00
240 volt		 LH6355-00
Product Bulletin
Diagram		 2 453 116" 113 5.4 $134
116355-01
240 volt		 LH6355-01
Product Bulletin
Diagram		 2 453 116" 113 5.4 $134

no tube shown yet		 116355-29
240 volt		 LH6355-29
Product Bulletin
Diagram		 2 453 116"
w/1.5"
inlet
tube		 113 5.4 $145

no tube shown yet		 116355-32
240 volt		 LH6355-32
Product Bulletin
Diagram		 2 453 116"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 113 5.4 $145
116392-00
120 volt		 LH6392-00
Product Bulletin
Diagram		 2 309 93" 97 7.7 $123

no tube shown yet		 116392-32
120 volt		 LH6392-32
Product Bulletin
Diagram		 2 309 93"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 97 7.7 $145

no tube shown yet		 116392-29
120 volt		 LH6392-29
Product Bulletin
Diagram		 2 309 93"
w/1.5"
inlet
tube		 97 7.7 $145
116407-13
120 volt		 LH6407-13
Prod Bulletin
Diagram		 2 441 112" 106 10.7 $134
116471-00
120 volt		 LH6471-00
Product Bulletin
Diagram		 2 474 115"
use in
VACU-
BOOM		 116 12.1 $123
116471-13
120 volt		 LH6471-13
Product Bulletin
Diagram		 2 474 115"
use in
VACU-
BOOM		 116 12.1 $123
116471-220v LH6471-220
Product Bulletin
Diagram		 2 385 107" 110 5.3 $123
116471-230v LH6471-230
Product Bulletin
Diagram		 2 419 111" 112 5.4 $123

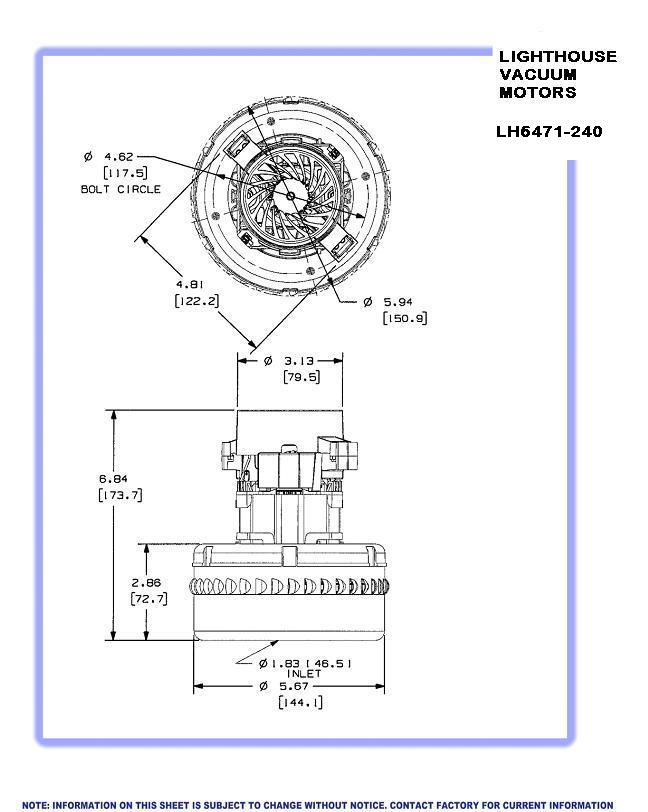

116471-240v LH6471-240
Product Bulletin
Diagram		 2 453 116" 114 5.5 $123
116472-00
120 volt		 LH6472-00
Product Bulletin
Diagram		 2 441 112" 106 11.6 $134
116472-13
120 volt		 LH6472-13
Product Bulletin
Diagram		 2 441 112" 106 11.6 $134

tube not
shown yet!		 116472-29
120 volt		 LH6472-29
Product Bulletin
Diagram		 2 441 112"
w/1.5"
inlet
tube		 106 11.6 $145

tube not
shown yet!		 116472-32
120 volt		 LH6472-32
Product Bulletin
Diagram		 2 441 112"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 106 11.6 $145
116472-220 volt LH6472-220
Product Bulletin
Diagram		 2 382 106" 109 5.0 $134
116472-230 volt LH6472-230
Product Bulletin
Diagram		 2 420 111" 112 5.3 $134

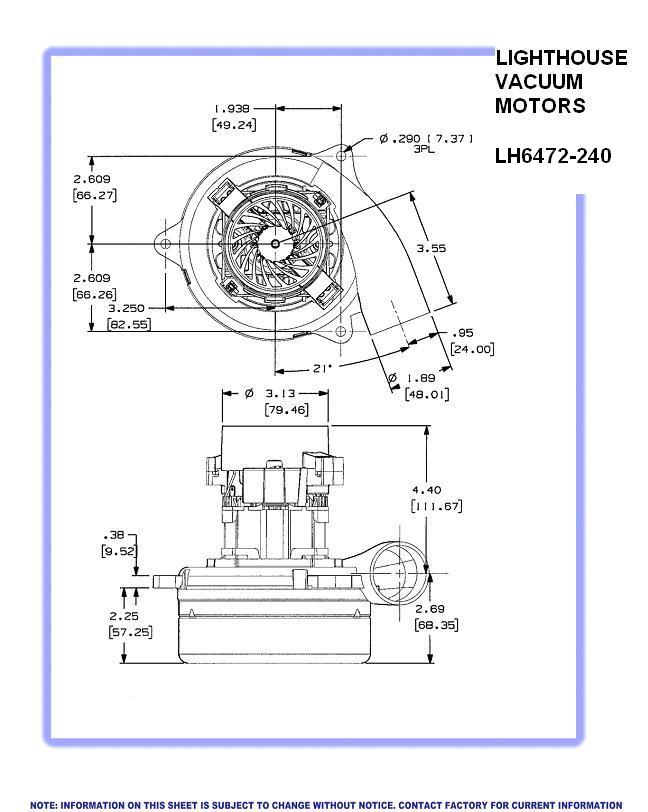

116472-240 volt LH6472-240
Product Bulletin
Diagram		 2 453 116" 113 5.4 $134
116472-AL
120 volt		 LH6472-AL
Product Bulletin
Diagram
Does Not have the 4th tab
 like the Imperial motor
Does not work in PowrFlite		 2 421 117"
aluminum horn		 105 12.0 $145
116472-AL- BL
120 volt		 LH6472-AL-BL
Product Bulletin
Diagram
Boat Dock Lift
Application with
glued fan shells		 2 421 117"
aluminum horn		 105 12.0 $156
116472-29-AL
120 volt		 LH6472-29-AL
Product Bulletin
Diagram
 2 421 117"
aluminum horn
w/1.5"
inlet
tube		 105 12.0 $156
116472-32-AL
120 volt		 LH6472-32-AL
Product Bulletin
Diagram		 2 421 117"
aluminum horn
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 105 12.0 $156
116472-AL
220 volt		 LH6472-AL-220
Product Bulletin
Diagram		 2 383 106"
aluminum horn		 109 5.0 $145
116472-AL
230 volt		 LH6472-AL-230
Product Bulletin
Diagram		 2 420 111"
aluminum horn		 112 5.3 $145
116472-AL
240 volt		 LH6472-AL -240
Product Bulletin
Diagram		 2 453 116"
aluminum horn		 113 5.4 $145
116472-OD
120 volt		 LH6472-OD
Product Bulletin
Diagram
Good Replacement
 for C130A motor		 2 537 118"
conical
bottom		 124 13.0 $145
116472-OD
120 volt
LL Brushes		 LLH6472-OD
Product Bulletin
Diagram
Good Replacement
 for C130A motor		 2 537 118"
conical
bottom		 124 13.0 $156
116472-OD
220 volt		 LH6472-OD-220
Product Bulletin
Diagram		 2 471 119"
conical
bottom		 114 6.0 $145
116472-OD
230 volt		 LH6472-OD-230
Product Bulletin
Diagram		 2 537 127"
conical
bottom		 120 6.4 $145
116472-OD
240 volt		 LH6472-OD-240
Product Bulletin
Diagram		 2 584 133"
conical
bottom		 123 6.7 $145
116472-AL-OD
120 volt		 LH6472-AL-OD
Product Bulletin
Diagram		 2 604 129"
conical
bottom
aluminum
horn		 131 13.4 $156
116472-AL-OD
120 volt
LL Brushes		 LLH6472-AL-OD
Product Bulletin
Diagram		 2 604 129"
conical
bottom
aluminum
horn		 131 13.4 $168
116472-AL-OD
220 volt		 LH6472-AL-OD-220
ProductBulletin
Diagram		 2 512 113"
conical
bottom
aluminum
horn		 124 6.3 $156
116472-AL-OD-
230 volt		 LH6472-AL-OD-230
Product Bulletin
Diagram		 2 556 120"
conical
bottom
aluminum
horn		 127 6.6 $156
116472-AL-OD-
230 volt
LL Brushes		 LLH6472-AL-OD-230
Product Bulletin
Diagram		 2 556 120"
conical
bottom
aluminum
horn		 127 6.6 $168

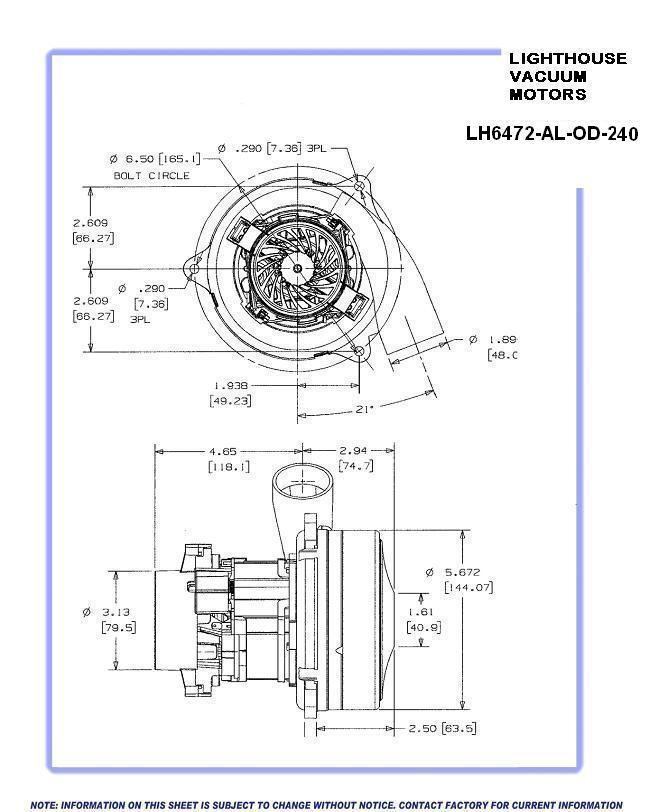

116472-AL-OD
240 volt		 LH6472-AL-OD-240
Product Bulletin
Diagram		 2 602 126"
conical
bottom
aluminum
horn		 130 6.9 $156
116512-13
36 volt		 LH6512-13
Product Bulletin
Diagram		 3 219 84.7" 77.6 18.1 $167
116513-13
36 volt		 LH6513-13
Product Bulletin
Diagram		 3 219 85" 80 17.8 $145
116513-32
36 volt		 LH6513-32
Product Bulletin
Diagram		 3 219 85"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 80 17.8 $156
116513-29
36 volt		 LH6513-29
Product Bulletin
Diagram		 3 219 85"
w/1.5"
inlet
tube		 80 17.8 $156
116514-13
24 volt		 LH6514-13
Product Bulletin
Diagram		 3 157 70.5" 71.2 21.6 $156
116515-13
24 volt		 LH6515-13
Product Bulletin
Diagram		 3 156 70.5" 71 21.7 $167
116515-32
24 volt		 LH6515-32
Product Bulletin
Diagram		 3 183 70.5"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 71 21.7 $179
116515-29
24 volt		 LH6515-29
Product Bulletin
Diagram		 3 183 70.5"
w/1.5"
inlet
tube		 71 21.7 $179
116555-13
24 volt		 LH6555-13
Product Bulletin
Diagram		 2 112 45.5" 72.6 14.8 $156
116556-13
36 volt		 LH6556-13
Product Bulletin
Diagram		 2 132 51" 75.9 11.7 $156
116565-13
120 volt		 LH6565-13
Product Bulletin
Diagram		 3 368 117" 99 10.3 $145
116565-32
120 volt		 LH6565-32
Product Bulletin
Diagram		 3 368 117"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 99 10.3 $156
116565-29
120 volt		 LH6565-29
Product Bulletin
Diagram		 3 368 117"
w/1.5"
inlet
tube		 99 10.3 $156
116565-OD
120 volt		 LH6565-OD
Product Bulletin
Diagram		 3 556 147"
overdrive
conical fan see
diagram		 109 12.6 $156
116594-13
220 volt		 LH6594-13
Product Bulletin
Diagram		 2 382 106" 109 5.0 $134
116596-13
36 volt		 LH6596-13
Product Bulletin
Diagram		 3 219 84.7" 77.6 18.1 $179
116596-29
36 volt		 LH6596-29
Product Bulletin
Diagram		 3 219 84.7" 77.6 18.1 $189
116598-13
24 volt		 LH6598-13
Product Bulletin
Diagram		 3 157 70.5" 71.2 21.6 $169
116599-13
24 volt		 LH6599-13
Product Bulletin
Diagram		 2 112 45.5" 72.6 15.0 $167
116599-29
24 volt		 LH6599-29
Product Bulletin
Diagram		 2 112 45.5"
w/1.5"
inlet
tube		 72.6 15.0 $179
116657-00
240 volt		 LH6657-00
Product Bulletin
Diagram		 2 453 116" 113 5.4 $134
116698-13
120 volt		 LH6698-13
Product Bulletin
Diagram		 3 368 117" 99 10.3 $167
116754-13
120 volt		 LH6754-13
Product Bulletin
Diagram
same as 116472-13 except upper
 fan blows up instead of down.		 2 441 112"
used in Honey Bee Spot Cleaner
&
Culmac
Carpet Cleaner		 106 10.7 $145
  116764-00
120 volt		 LH6764-00
Product Bulletin
Diagram		 3 370 123" 92 9.0 $145
116764-00
120 volt
LL Brushes		 LLH6764-00
Product Bulletin
Diagram		 3 370 123" 92 9.0 $155
116765-13
120 volt		 LH6765-13
Product Bulletin
Diagram		 3 512 141" 106 13.2 $145
116765-13
120 volt
LL Brushes		 LLH6765-13
Product Bulletin
Diagram		 3 512 141" 106 13.2 $155
116765-29
120 volt		 LH6765-29
Product Bulletin
Diagram		 3 512 141"
w/1.5"
inlet
tube		 106 13.2 $156
116765-32
120 volt		 LH6765-32
Product Bulletin
Diagram		 3 512 141"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 106 13.2 $156
116765-32
120 volt
LL Brushes		 LLH6765-32
Product Bulletin
Diagram		 3 512 141"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 106 13.2 $166
116765-HD
120 volt		 LH6765-HD
Product Bulletin
Diagram		 3 484 137"
less dry dust fan problems		 104 12.9 $151
116765-29-HD
120 volt		 LH6765-29-HD
Product Bulletin
Diagram		 3 484 137"
less dry dust fan problems
w/1.5"
inlet
tube		 104 12.9 $162
116765-32-HD
120 volt		 LH6765-32-HD
Product Bulletin
Diagram		 3 484 137"
less dry dust fan problems
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 104 12.9 $162
116765-OD
120 volt		 LH6765-OD
Product Bulletin
Diagram		 3 648 153.3"
overdrive
conical fan see
diagram		 117.8 15.7 $167
116765-OD
120 volt
LL Brushes		 LLH6765-OD
Product Bulletin
Diagram		 3 648 153.3"
overdrive
conical fan see
diagram		 117.8 15.7 $177
116765-OD
220 volt		 LH6765-OD-220
Product Bulletin
Diagram		 3 560 137.3"
overdrive
conical fan see
diagram		 111.2 7.6 $167

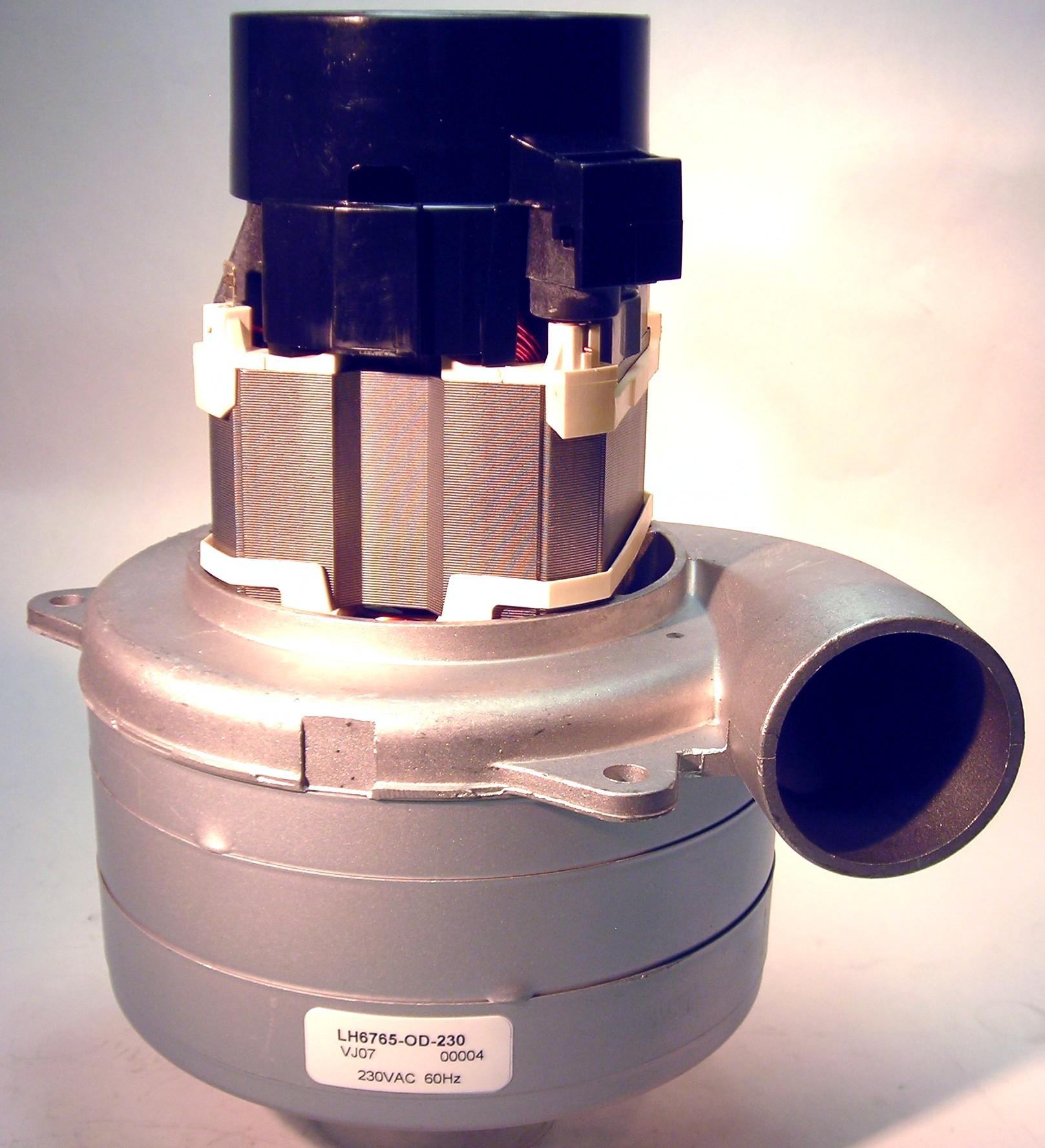

116765-OD
230 volt		 LH6765-OD-230
Product Bulletin
Diagram		 3 597 144.3"
overdrive
conical fan see
diagram		 113.2 7.9 $167
116765-OD
240 volt		 LH6765-OD-240
Product Bulletin
Diagram		 3 651 151.9"
overdrive
conical fan see
diagram		 120.2



 8.1 $167
116859-00
240 volt		 LH6859-00
Product Bulletin
Diagram		 3 400 122" 96 5.4 $145
116859-13
240 volt		 LH6859-13
Product Bulletin
Diagram		 3 400 122" 96 5.4 $145

117123-00
220 volt		 LH7123-220
Product Bulletin
Diagram		 3 479 136" 103.7 6.5 $134
117123-00
220 volt
LL Brushes		 LLH7123-220
Product Bulletin
Diagram		 3 479 136" 103.7 6.5 $145
117123-00
230 volt		 LH7123-230
Product Bulletin
Diagram		 3 509 142.3" 107.2 6.8 $134
117123-00
230 volt
LL Brushes		 LLH7123-230
Product Bulletin
Diagram		 3 509 142.3" 107.2 6.8 $145
117123-00
240 volt		 LH7123-00
Product Bulletin
Diagram		 3 552 148.8" 110.3 7.0 $134
117123-00
240 volt
LL Brushes		 LLH7123-00
Product Bulletin
Diagram		 3 552 148.8" 110.3 7.0 $145
117123-13
240 volt		 LH7123-13
Product Bulletin
Diagram		 3 552 148.8" 110.3 7.0 $134

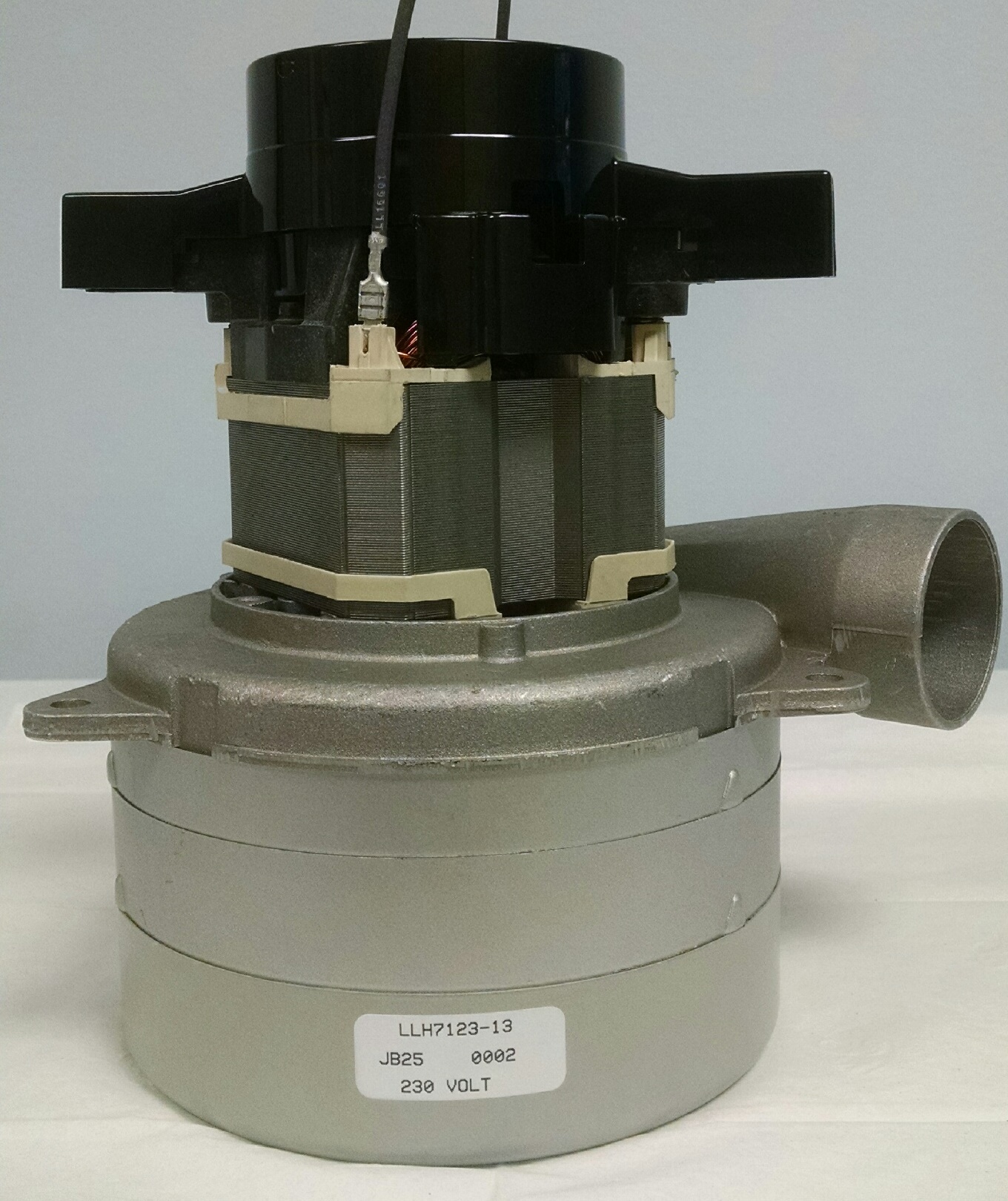

117123-13
240 volt
LL Brushes		 LLH7123-13
Product Bulletin
Diagram		 3 552 148.8" 110.3 7.0 $145
117123-24
240 volt		 LH7123-24
Product Bulletin
Diagram		 3 552 148.8"
w/1.5"
inlet
tube
no
Packard
Plug		 110.3 7.0 $145
117123-24
240 volt
LL Brushes		 LLH7123-24
Product Bulletin
Diagram		 3 552 148.8"
w/1.5"
inlet
tube
no
Packard
Plug		 110.3 7.0 $156
117123-29
240 volt		 LH7123-29
Product Bulletin
Diagram		 3 552 148.8"
w/1.5"
inlet
tube		 110.3 7.0 $145
117123-29
240 volt
LL Brushes		 LLH7123-29
Product Bulletin
Diagram		 3 552 148.8"
w/1.5"
inlet
tube		 110.3 7.0 $156
117123-32
240 volt		 LH7123-32
Product Bulletin
Diagram		 3 552 148.8"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 110.3 7.0 $145
117123-32
240 volt
LL Brushes		 LLH7123-32
Product Bulletin
Diagram		 3 552 148.8"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 110.3 7.0 $156
117123-OD
220 volt		 LH7123-OD-220
Product Bulletin
Diagram		 3 560 137.3"
overdrive
conical fan see
diagram		 111.2 7.6 $167
  117123-OD
220 volt
LL Brushes		 LLH7123-OD-220
Product Bulletin
Diagram		 3 560 137.3"
overdrive
conical fan see
diagram		 111.2 7.6 $177
117123-OD
230 volt		 LH7123-OD-230
Product Bulletin
Diagram		 3 597 144.3"
overdrive
conical fan see
diagram		 113.2 7.9 $167
  117123-OD
230 volt
LL Brushes		 LLH7123-OD-230
Product Bulletin
Diagram		 3 597 144.3"
overdrive
conical fan see
diagram		 113.2 7.9 $177
117123-OD
240 volt		 LH7123-OD-240
Product Bulletin
Diagram		 3 651 151.9"
overdrive
conical fan see
diagram		 120.2



 8.1 $167
  117123-OD
240 volt
LL Brushes		 LLH7123-OD-240
Product Bulletin
Diagram		 3 651 151.9"
overdrive
conical fan see
diagram		 120.2



 8.1 $177
117320-00
 120 volt		 LH7320-00
Product Bulletin
Diagram		 1 420 99.9" 112.5 9.8 $109 NLA
117396-00
230 volt		 LH7396-00
Product Bulletin
Diagram		 2 419 111" 112 5.4 $123
117446-32
120 volt		 LH7446-32
Product Bulletin
Diagram		 3 405 122"
w/1.5"
inlet
tube
plus
1.875"
 sleeve		 99 11.2 $167

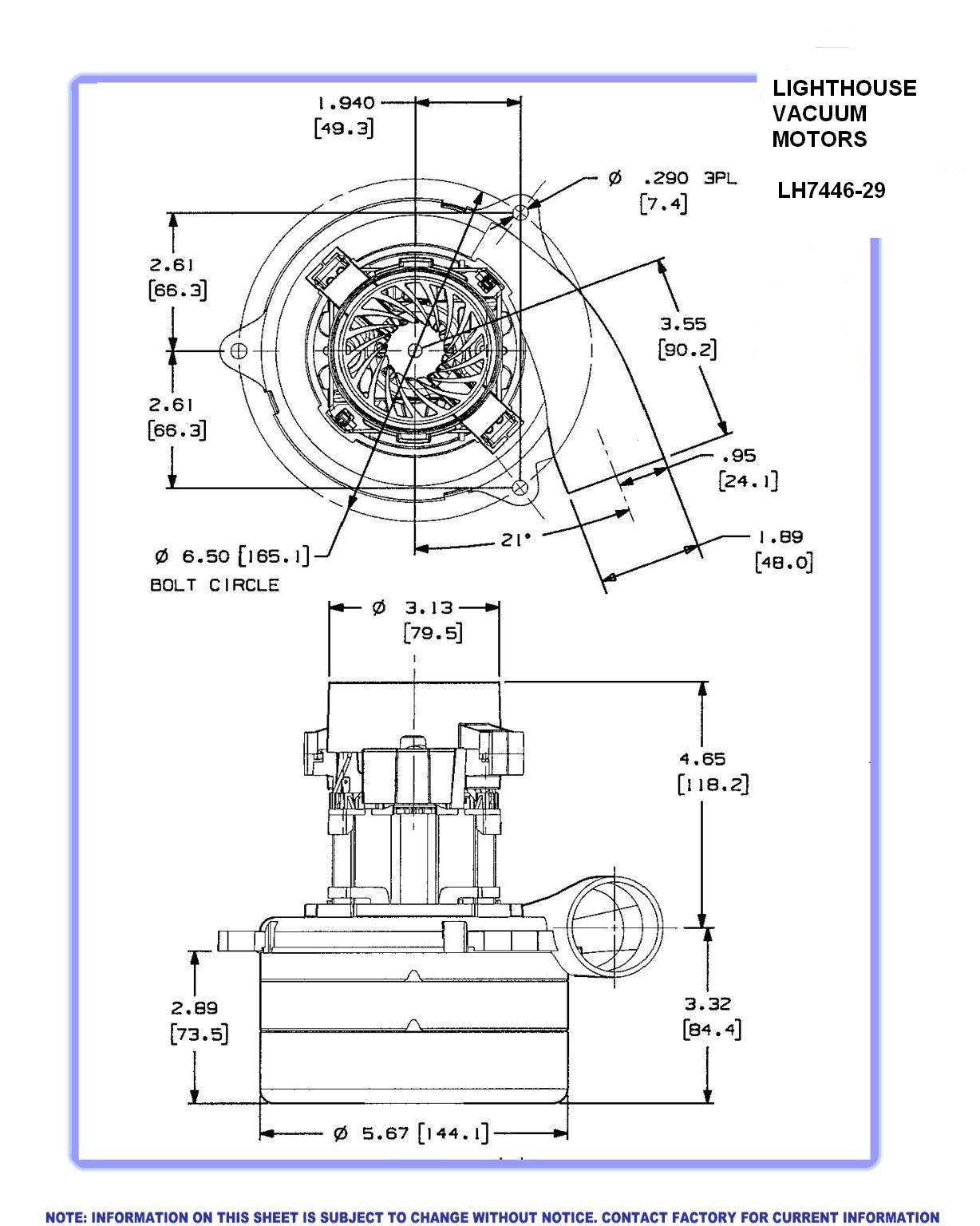

117446-29
120 volt		 LH7446-29
Product Bulletin
Diagram		 3 405 122"
w/1.5"
inlet
tube		 99 11.2 $167
117447-29
240 volt		 LH7447-29
Product Bulletin
Diagram		 3 400 122"
w/1.5"
inlet
tube		 96 5.4 $167
117795-00
120 volt		 LH7795-00
Product Bulletin
Diagram		 2 421 117"
aluminum horn		 105 12.0 $145
117796-00
240 volt		 LH7796-00
Product Bulletin
Diagram		 2 453 116"
aluminum horn		 113 5.4 $145
119414-00
120 volt		 LH9414-00
Product Bulletin
Diagram		 2 281 84" 96 7.4 $89
  119431-13
36 volt		 LH9431-13
Product Bulletin
Diagram		 3 219 84.7" 77.6 18.1 $167
  119434-13
36 volt		 LH9434-13
Product Bulletin
Diagram		 2 118 50.6" 71.1 10.7 $169
  119434-29
36 volt
1 1/2" tube		 LH9434-29
Product Bulletin
Diagram		 2 118 50.6" 71.1 10.7 $179
  119434-32
36 volt
1 7/8" tube		 LH9434-32
Product Bulletin
Diagram		 2 118 50.6" 71.1 10.7 $179
  119436-13
24 volt		 LH9436-13
Product Bulletin
Diagram		 2 103 45.6" 68.1 15.9 $156
  119436-29
24 volt
1 1/2" tube		 LH9436-29
Product Bulletin
Diagram		 2 103 45.6" 68.1 15.9 $167
  119436-32
24 volt
1 7/8" tube		 LH9436-32
Product Bulletin
Diagram		 2 103 45.6" 68.1 15.9 $167
119514-00
120 volt		 LH9514-00
Product Bulletin
Diagram		 2 281 84" 96 7.4 $89
119516-13
24 volt		 LH9516-13
Product Bulletin
Diagram		 2 112 45.5" 72.6 14.8 $156
  119517-13
24 volt		 LH9517-13
Product Bulletin
Diagram		 3 157 70.5" 71.2 21.6 $167
  119518-13
36 volt		 LH9518-13
Product Bulletin
Diagram		 2 131 51.0" 75.9 11.7 $156
119549-00
230 volt		 LH9549-00
Product Bulletin
Diagram
same as LH7123-230		 3 509 142.3" 107.2 6.8 $134
119562-00
120 volt		 LH9562-00
Product Bulletin
Diagram		 1 465 96" 145 9.9 $111
119563-120
120 volt		 LH9563-120
Product Bulletin
Diagram		 1 465 96" 145 9.9 $111
119563-220
220 volt		 LH9563-220
Product Bulletin
Diagram		 1 410 91" 138 4.4 $111
119563-230
230 volt		 LH9563-230
Product Bulletin
Diagram		 1 450 94" 142 4.6 $111
119563-00
240 volt		 LH9563-00
Product Bulletin
Diagram		 1 489 98" 147 4.9 $111
119631-00
120 volt		 LH9631-00
Product Bulletin
Diagram		 2 604 129" 131 13.4 $145
119631-00
120 volt
LL Brushes		 LLH9631-00
Product Bulletin
Diagram		 2 604 129" 131 13.4 $156
119632-00
120 volt		 LH9632-00
Product Bulletin
Diagram		 2 421 117" 105 12.0 $145
119633-00
120 volt		 LH9633-00
Product Bulletin
Diagram		 2 604 129" 131 13.4 $145
See top of page

LLBrushes

 119633-00
120 volt
LL Brushes		 LLH9633-00
Product Bulletin
Diagram		 2 604 129" 131 13.4 $156
119656-00
240-volt		 LH9656-00
Product Bulletin
Diagram		 2 339 95" 101 4.2 $111
119678-AL-220
220 volt		 LH9678-220
Product Bulletin
Diagram		 2 471 120" 115 6.0 $167
119678-AL-230
230 volt		 LH9678-230
Product Bulletin
Diagram		 2 537 127" 120 6.4 $167
119678-AL-00
240 volt		 LH9678-00
Product Bulletin
Diagram		 2 580 134" 124 6.7 $167
119678-220
220 volt		 LH9678-220
Product Bulletin
Diagram		 2 471 120" 115 6.0 $156
119678-220
220 volt
LL Brushes		 LLH9678-220
Product Bulletin
Diagram		 2 471 120" 115 6.0 $167
119678-230
230 volt		 LH9678-230
Product Bulletin
Diagram		 2 537 127" 120 6.4 $156
119678-230
230 volt
LL Brushes		 LLH9678-230
Product Bulletin
Diagram		 2 537 127" 120 6.4 $167
119678-00
240 volt		 LH9678-00
Product Bulletin
Diagram		 2 584 133" 123 6.7 $156
119678-00
240 volt
LL Brushes		 LLH9678-00
Product Bulletin
Diagram		 2 584 133" 123 6.7 $167
119697-00
120 volt		 LH9697-00
Product Bulletin
Diagram
This motor is MORE powerful, more
 efficient and uses less power, but
is .8" taller than the 119697-00
See diagrams to be sure!
used in CV3120 Eureka CV		 2 559 135" 123 11.7 $145
119708-00
120 volt		 LH9708-00
Product Bulletin
Diagram		 2 604 129" 131 13.4 $145
See top of page

LLBrushes

 119708-00
120 volt
LL Brushes		 LLH9708-00
Product Bulletin
Diagram		 2 604 129" 131 13.4 $156
119709-00
240 volt		 LH9709-00
Product Bulletin
Diagram		 2 602 126" 130 6.69 $145
119710-00
230 volt		 LH9710-00
Product Bulletin
Diagram		 2 556 120" 127 6.6 $145
 to US

$205
to
Europe




119711-00
230 volt		 LH9711-00
Product Bulletin
Diagram		 2 556 120" 127 6.6 $145
 to US

$205
to
Europe


119800-00
120 volt		 LH9800-00
Product Bulletin
Diagram
This motoris .4"
taller than the 119800-00
See diagrams to be sure!		 2 559 135" 123 11.7 $145

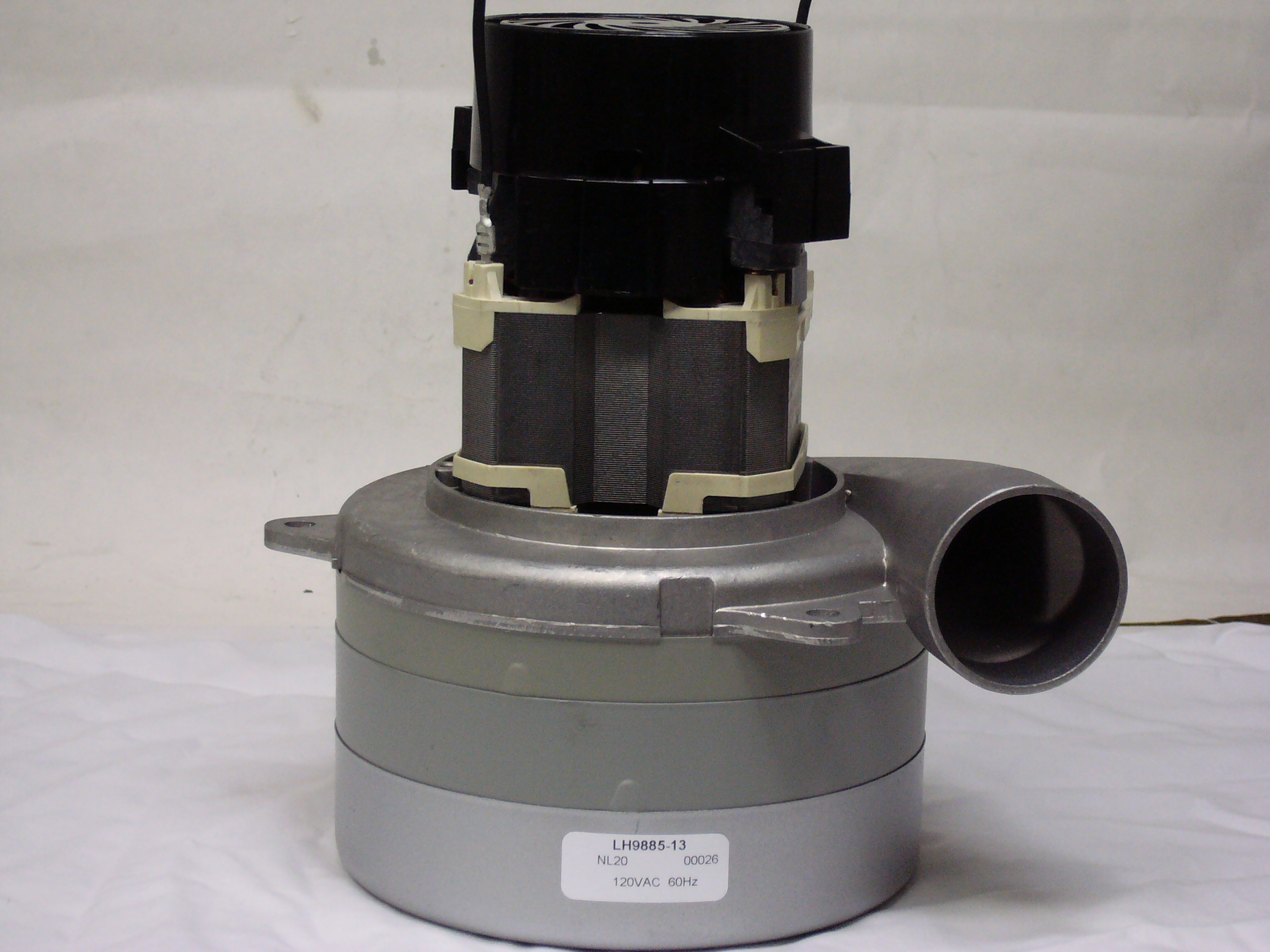

119885-13
120 volt		 LH9885-13
Product Bulletin
Diagram
.15" taller than the 119885-13		 3 255 93.5" 82.7 6.4 $156
119992-00
120 volt		 LH9992-120
Product Bulletin
Diagram
good replacement for
6600-036		 2 604 129" 131 13.4 $145
119992-00
120 volt
LL Brushes		 LLH9992-120
Product Bulletin
Diagram
good replacement for
6600-036		 2 604 129" 131 13.4 $156
119992-00
120 volt
 to
Canada		 LH9992-120
Product Bulletin
Diagram
good replacement for
6600-036		 2 604 129" 131 13.4 $179
119992-
220 volt		 LH9992-220
ProductBulletin
Diagram		 2 512 120" 124 6.3 $156
119992-
220 volt
LL Brushes		 LLH9992-220
ProductBulletin
Diagram		 2 512 120" 124 6.3 $167
119992-
230 volt		 LH9992-230
Product Bulletin
Diagram		 2 556 120" 127 6.6 $156
119992-
230 volt
LL Brushes		 LLH9992-230
Product Bulletin
Diagram		 2 556 120" 127 6.6 $167
119992
240 volt		 LH9992-240
Product Bulletin
Diagram		 2 602 126" 130 6.9 $156
119992
240 volt
LL Brushes		 LLH9992-240
Product Bulletin
Diagram		 2 602 126" 130 6.9 $167
119997-00
120 volt		 LH9997-00
Product Bulletin
Diagram
Note: .4" taller than 119997-00
and about 2% less power		 2 604 139" 126 13.0 $128

119997-00
120 volt

LL Brushes

 LLH9997-00
Product Bulletin
Diagram
Note: .4" taller than 119997-00
and about 2% less power		 2 604 139" 126 13.0 $139
122060-00
230 volt		 LH2060-00
Product Bulletin
Diagram
does not have plug
on end of wires		 2 537 127" 120 6.4 $156
122101-00
 240 volt		 LH2101-00
Product Bulletin
Diagram		 2 453 116" 113 5.4 $134
122373-00
 120 volt		 LH2373-00
Product Bulletin
Diagram		 3 601 158.4" 110.5 14.5 $167
122373-00
 120 volt
LL Brushes		 LLH2373-00
Product Bulletin
Diagram		 3 601 158.4" 110.5 14.5 $178
122375-00
120 volt
w/o plug		 LH2375-00
Product Bulletin
Diagram		 2 309 93" 97 7.7 $123

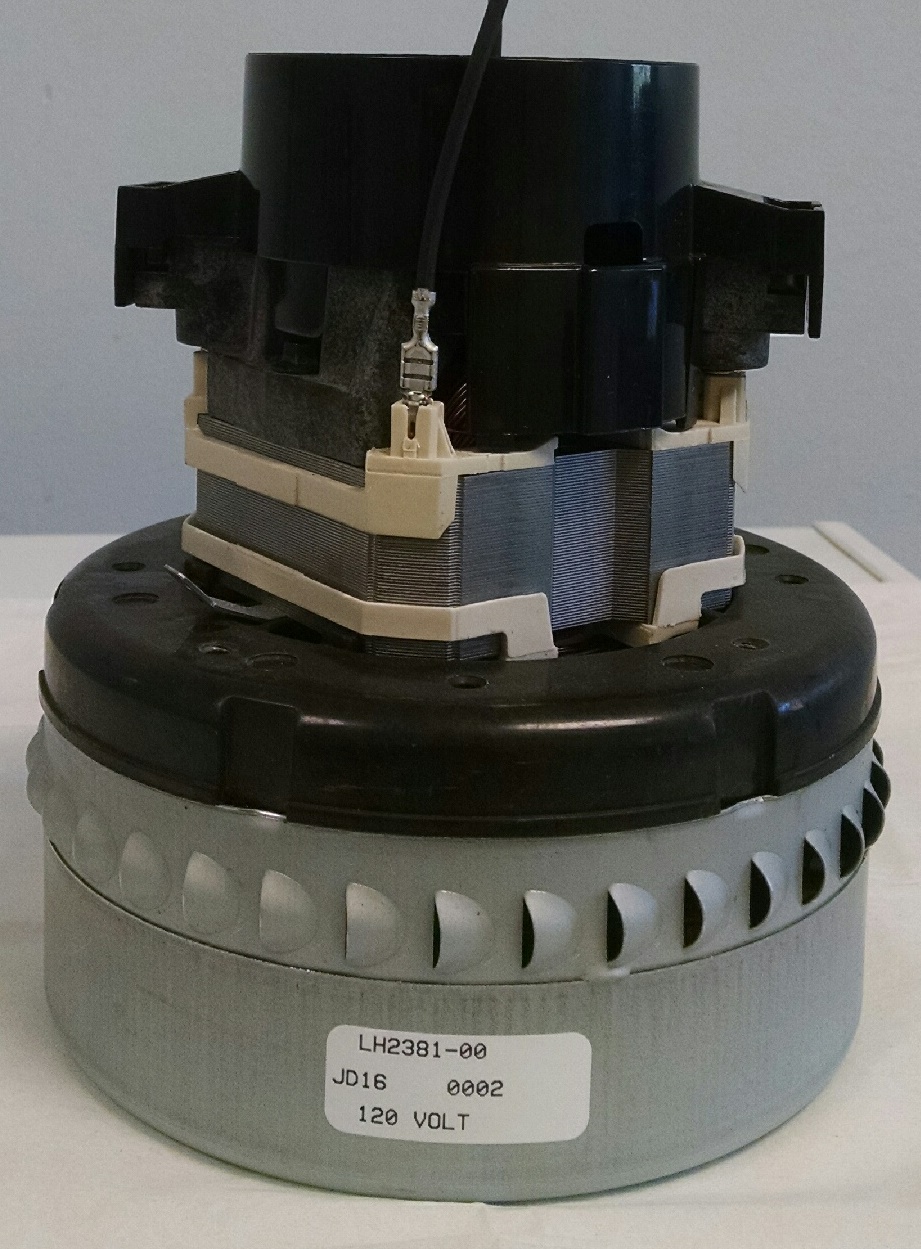

122381-
00
120 volt
w/thermal		 LH2381-00
Product Bulletin
Diagram
S26
ERMATOR
HEPA DUST
EXTRACTOR		 2 308 89 101 8.1 $123
122381-
220
220 volt
w/thermal		 LH2381-220
Product Bulletin
Diagram
S36
ERMATOR
HEPA DUST
EXTRACTOR		 2 289 86" 96 3.9 $134
122567-00
120 volt		 LH2567-00
Product Bulletin
Diagram		 2 529 134" 113 13.2 $134
122567-00
120 volt
LL Brushes		 LLH2567-00
Product Bulletin
Diagram		 2 529 134" 113 13.2 $145
6600-014
120 volt		 LH6600-014
Product Bulletin
Diagram		 2 551 118" 131 13.9 $156
6600-014
120 volt
LL Brushes		 LLH6600-014
Product Bulletin
Diagram
MAKE SURE
 THAT YOUR
UNIT HAS
EXTRA ROOM
FOR THESE
BRUSHES		 2 551 118" 131 13.9 $167
6600-036
120 volt		 LH6600-036
Product Bulletin
Diagram
AirVac
AVR12000		 2 570 122" 128 13.9 $156
6600-104A
120 volt		 LH6600-104A
Product Bulletin
Diagram		 3 315 108.2" 90.1 8.1 $145
6600-166A
120 volt		 LH6600-166A
Product Bulletin
Diagram		 3 407 125" 96.7 10.7 $134
6500-242
120 volt
upgrade		 LH6500-242up
Product Bulletin
Diagram
Aerus/Electrolux		 2 258 117.9" 114.1 10.3 $119
072-3450
120 volt		 LH72-3450
Product Bulletin
Diagram		 2 308 89" 101 8.1 $89
Brush Kits include the tool for installation and brush depth gauge for determining  remaining brush life!
24 Volt
Brush Set		 LH24BS
we do not
recommend
replacing the
24 volt brushes -
armature is
usually shot!		     Instructions     $19
Brush Kits include the tool for installation and brush depth gauge for determining  remaining brush life!
36 Volt
Brush Set		 LH36BS     Instructions     $19
Brush Kits include the tool for installation and brush depth gauge for determining  remaining brush life!
120 Volt
Brush Set		 LH120BS     Instructions     $19
Brush Kits include the tool for installation and brush depth gauge for determining  remaining brush life!
240 Volt
Brush Set		 LH240BS     Instructions     $19
Domel Replacement Lighthouse Vacuum Motors
Pictures Domel# Lighthouse# No.
Fan
Stg		 Peak
Air
Watts		 Vac In (") H2O Sealed CFM
 2" Orifice		 Avg.
Amps
3/4"		 Sell
For		 Buy
491.3.720
120 volt		 LH3720-00
Product Bulletin
Diagram		 2 604 129 131" 13.4 $145
491.3.720
220 volt		 LH3720-220
ProductBulletin
Diagram		 2 512 120 124" 6.3 $145
491.3.720
230 volt		 LH3720-230
Product Bulletin
Diagram		 2 556 120 127" 6.6 $145
491.3.720
240 volt		 LH3720-240
Product Bulletin
Diagram		 2 602 126 130" 6.9 $145

491.3.732
120 volt		 LH3732-00-A
Product Bulletin
Diagram		 2 421 104 117" 12.0 $145
491.3.732
220 volt		 LH3732-220-A
Product Bulletin
Diagram		 2 302 91 99" 4.3 $145
491.3.732
230 volt		 LH3732-00-A
Product Bulletin
Diagram		 2 328 96 102" 4.4 $145
491.3.732
240 volt		 LH3732-240-A
Product Bulletin
Diagram		 2 356 101 104" 4.6 $145
Note - the "T" Thermoset Horned motors are more equal to the performance
of the Domel 491.3.732 but with out the Aluminum horn.
491.3.732
120 volt		 LH3732-120-T
Product Bulletin
Diagram		 2 421 112 106" 11.6 $134
491.3.732
220 volt		 LH3732-220-T
Product Bulletin
Diagram		 2 382 106 109" 5.0 $134
491.3.732
230 volt		 LH3732-00
Product Bulletin
Diagram		 2 420 111 112" 5.3 $134
491.3.732
240 volt		 LH3732-240-T
Product Bulletin
Diagram		 2 453 116 113" 5.4 $134

Prices include shipping within contiguous USA!
except where noted!
Pallet discounts available!
Large orders available usually 2 to 3 weeks!
We can design a 5.7" motor for YOU!

NEW HIGH POWER HVLP 3, 4, 5 Stage
THESE MOTORS ARE USED FOR HVLP PAINT SPRAYERS
All HVLP motors MUST be held together since they are used to
produce pressure instead of vacuum.  The bottom section must be
held (Clamped Together) to avoid separation, causing fan rubbing,
 but not too tightly in which case the fan cans telescope over each
 other and also cause fan rubbing. To run these motors without
 support voids the warranty.  If in doubt - please call us!

Pictures Ametek# Lighthouse# No.
Fan
Stg		 Peak
Air
Watts		 Vac In (") H2O Sealed CFM
 2" Orifice		 Avg.
Amps
3/4"		 Sell
For		 Buy
Q6600-066A-29
120 volt		 LH-066A-29
Product Bulletin
Diagram		 3 512 141" 106 13.2 $190
LH-HVLP-3S
120 volt		 LH-HVLP-3S
Product Bulletin
Diagram		 3 334 167" 60.7 11.4 $190
LH-HVLP-3S
220 volt		 LH-HVLP-3S
Product Bulletin
Diagram		 3 286 150" 58.0 5.6 $190
LH-HVLP-3S
230 volt		 LH-HVLP-3S
Product Bulletin
Diagram		 3 308 156" 59.8 5.8 $190
LH-HVLP-3S
240 volt		 LH-HVLP-3S
Product Bulletin
Diagram		 3 329 162" 61.0 6.0 $190
LH-HVLP-4S
120 volt
AcuSpray 240
replacement
.4" shorter than
119292-00 and
1" shorter than
122195-00		 LH-HVLP-4S
Product Bulletin
Diagram		 4 371 191" 64.1 11.7 $229
LH-HVLP-4S
220 volt		 LH-HVLP-4S
Product Bulletin
Diagram		 4 347 181" 58.1 6.6 $229
LH-HVLP-4S
230 volt		 LH-HVLP-4S
Product Bulletin
Diagram		 4 375 189" 59.5 6.9 $229
LH-HVLP-4S
240 volt		 LH-HVLP-4S
Product Bulletin
Diagram		 4 406 199" 62.0 7.3 $229
LH-HVLP-5S
120 volt.
.034" longer
than 122050-00
.156" shorter
than 122195-00		 LH-HVLP-5S
Product Bulletin
Diagram		 5 396 202" 62.4 13.8 $249
LH-HVLP-5S
220 volt		 LH-HVLP-5S
Product Bulletin
Diagram		 5 330 191" 54.2 6.7 $259
LH-HVLP-5S
230 volt		 LH-HVLP-5S
Product Bulletin
Diagram		 5 357 199" 55.5 7.0 $259
LH-HVLP-5S
240 volt		 LH-HVLP-5S
Product Bulletin
Diagram		 5 388 209" 57.2 7.4 $259

NEW HIGH POWER FLOW-THRU-600 AIR-WATTS

Pictures Ametek# Lighthouse# No.
Fan
Stg		 Peak
Air
Watts		 Vac In (") H2O Sealed CFM
 2" Orifice		 Avg.
Amps
3/4"		 Sell
For		 Buy
122093-00
120 volt		 LH2093-00
Product Bulletin
Diagram		 2 604 139" 126 13.0 $128
122093-00
120 volt
LL
Brushes		 LLH2093-00
Product Bulletin
Diagram		 2 604 139" 126 13.0 $139
122093-00
220 volt		 LH2093-220
Product Bulletin
Diagram		 2 486 126" 116 5.4 $123
122093-00
220 volt
LL
Brushes		 LLH2093-220
Product Bulletin
Diagram		 2 486 126" 116 5.4 $134
122093-00
230 volt		 LH2093-230
Product Bulletin
Diagram		 2 544 134" 120 6.0 $123
122093-00
230 volt
LL
Brushes		 LLH2093-230
Product Bulletin
Diagram		 2 544 134" 120 6.0 $134
122093-00
240 volt		 LH2093-240
Product Bulletin
Diagram		 2 602 140" 123 6.4 $123
122093-00
240 volt
LL
Brushes		 LLH2093-240
Product Bulletin
Diagram		 2 602 140" 123 6.4 $134

NEW 5.1" FLOW-THRU-MOTORS

Pictures Ametek# Lighthouse# No.
Fan
Stg		 Peak
Air
Watts		 Vac In (") H2O Sealed CFM
 2" Orifice		 Avg.
Amps
3/4"		 Sell
For		 Buy

120 volt		 LH5080-120
Product Bulletin
Diagram		 1 286 79.7" 99.1 6.6 $105

120 volt		 LH5081-120
Product Bulletin
Diagram		 1 420 99.9" 112.5 9.8 $105

220 volt		 LH5082-220
Product Bulletin
Diagram		 1 337 87.5" 103.9 4.2 $107

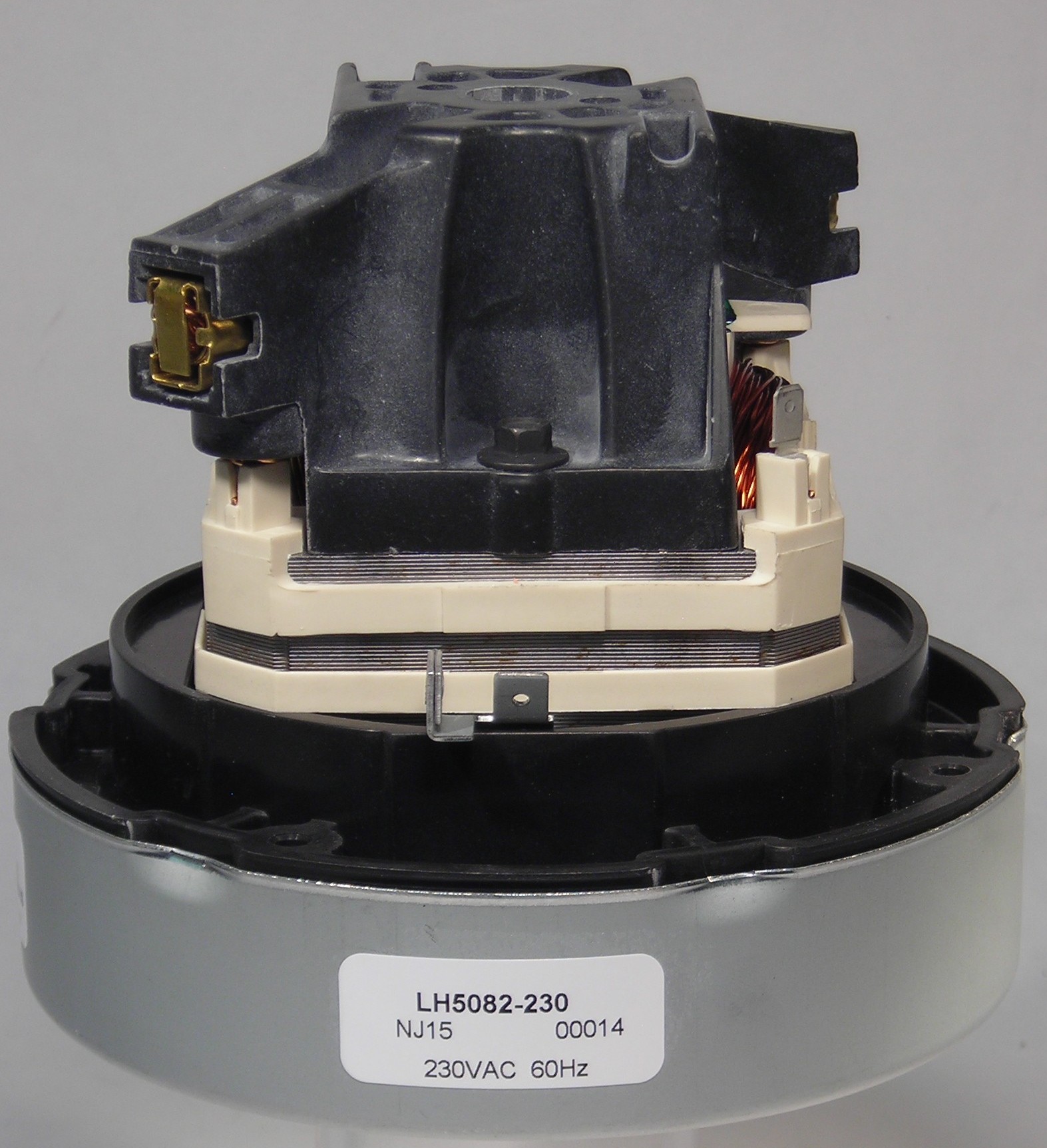

230 volt		 LH5082-230
Product Bulletin
Diagram		 1 369 92.3" 107.8 4.4 $107

240 volt		 LH5082-240
Product Bulletin
Diagram		 1 392 95.8" 109.3 4.5 $107

Copyright Lighthouse Enterprises, LLC 1998-2024
Privacy Policy   About Us  Contact Us  Shipping and Returns
    Prices are subject to change without notice due to errors on our part or price increases!
www.CartPartsRUS.com, www.BatteryChargerDepot.com, www.FloorScrubberPartsDepot.com,
 www.FloorSweeperPartsDepot.com, www.LiftPartsRUS.com, www.LighthouseEnterprises.us
